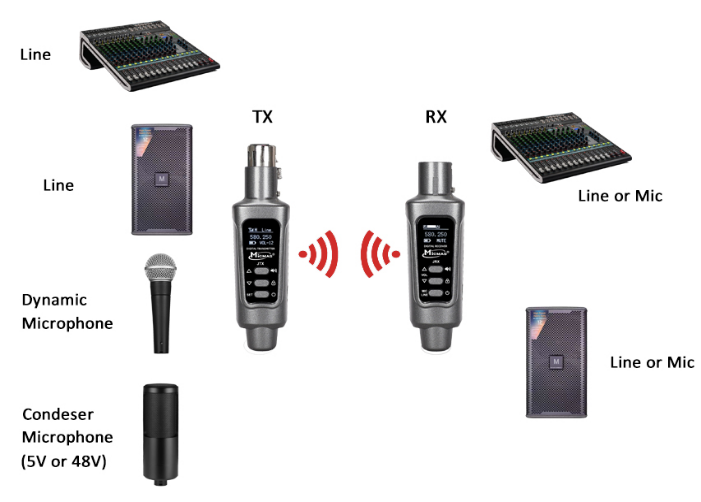

TX/RX-3610直插式数字无线麦克风系统可以转换任何XLR信号源，包括动圈式话筒和电容式话筒甚至线路信号，以用作无线发射机。通过稳定可靠的UHF连接，TX-3610可以将任何XLR信号源的24位数字音频发送给RX-3610数字无线接收机，进而连接到各种音频设备上。当您在发射机上更改频率时，接收机可自动快速地同步匹对发射机。明亮的前置OLED屏幕可显示工作频率、传输功率状态、输入信号的种类、声音大小、电池寿命等信息。全套系统可通过USB-C端口充电，可在任何需要的地方实现出色的无线性能。

TX/RX-3610 Plug-On Digital Wireless Transmitter converts any XLR source, including dynamic and condenser microphones even line signal, for using as an  wireless transmitter. The TX-3610 sends 24-bit digital audio from any XLR source to RX-3610 digital wireless receivers via rock-solid UHF RF connection. When changing the frequency on the transmitter, the receiver will automatically and quickly synchronizes with the transmitter. A bright front OLED screen displays the information including working frequencies, transmission and reception power status, volume, battery life, etc.

Features

■ Transmitter for dynamic, condenser microphone and line signal.

■ Receiver with output level suitable for mic or line inputs.

■ 50 Ch Transmitter Receiver Set.

■ Adjustable radio output power.

■ Adjustable volume on TX and RX.

■ Mute function on TX and RX.

技术参数Specification

■ 频率范围Frequency Range: 558.250 - 582.750MHz

■ 可选频率Selectable frequency: 50

■ 频率稳定性Frequency Stability: 土0.005nn%

■ 信噪比SNR: >114dB

■ 失真率Systematic Distortion: <0.3%

■ 频响Response Frequency: 20Hz-20KHz

■ 工作距离Working Range: 50 Meters(open area)

■ 温度Working Temperature: -20℃ to 50℃

■ 发射机输入信号Input signal： Mic-0V, 5V, 48V, Line

■ 可选频率Selectable frequency： 50

■ 音频采样Audio samplization: 48K/24 bit

■ 电池 Battery: Lithium battery

■ 电池寿命 Battery Life： 7 hours

■ 充电接头Charging Connector： USB-C
